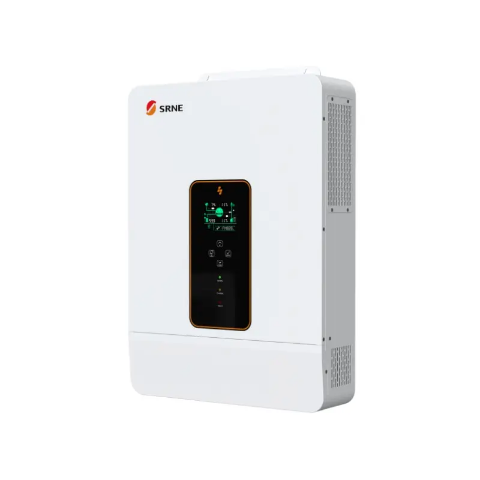

8200W On/Off-Grid Solar Inverter – 48V Hybrid Inverter with MPPT, 160A PV Charge & 140A AC Charger
KSh 88,400.00
8.2KW hybrid solar inverter for on/off-grid systems with 48V battery, 500V PV input, 160A PV charging, and 140A AC charging. Smart MPPT control, grid feed-in, and lithium battery support.
Description
Product Title:
8.2KW Solar Inverter (On/Off Grid)
Rated Output Power: 8200W
Nominal Operating Voltage: 360VDC
Maximum PV Array Open Circuit Voltage (Voc): 500VDC
MPPT Operating Voltage Range: 90 – 450VDC
Full Load MPPT Operating Voltage: 360 – 450VDC
Number of MPPT / Max Input Current: 1 / 27A
Maximum PV Charging Current: 160A
Feed-In Grid Voltage: 230VAC, 50/60Hz
Nominal Output Voltage: 230VAC, 50/60Hz
Maximum Main Load: 8200W
Maximum Second Load: 2733W
Main Load Cut-Off / Return Voltage: 44V / 52VDC
Nominal AC Input Voltage: 230VAC, 50/60Hz
Maximum AC Charging Current: 140A
Battery Voltage: 48VDC
Communication Port: RS232 / GPRS / WIFI / Lithium Battery Support
Product Size: 310 x 420 x 110mm
Package Size: 470 x 590 x 210mm
Net Weight: 14.2kg
Warranty: 3 years
